METAL BEAM CRASH BARRIERS

C & N CORP as the name suggests, is a responsive business house serving the basic requirements of life and committed towards betterment of living through safety.

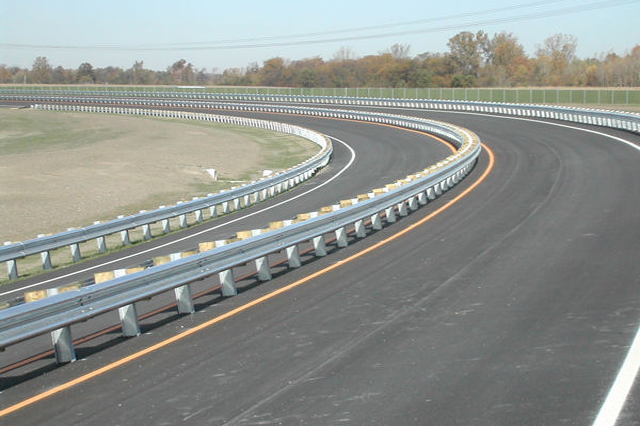

C & N CORP Metal Beam Crash Barriers is a reliable solution providing safety to people's lives on the road. We undertake design, manufacturing, and supply of wide range of Metal Beam Crash Barrier under stringent quality control. It is based on the guidelines issued by ministry of Road transport and Highways (MORTH) and other international specifications like AASHTO t80. C & N CORP offers every possible range of "W" beam and "Thrie" beam type steel crash barrier systems with necessary Anchorage Facilities. The basic functions of Metal beam crash barrier are to absorb the impact energy of the collecting vehicle thus minimizing extend of risk and damage to the vehicles and its passengers. Besides, it prevents the vehicles from rolling down the high embankments and veering off the carriageway. Thus, Metal beam Crash Barrier find its typical applications s in highways, Expressways, bridges, and flyovers.

Salient Features

C & N CORP Metal Beam Crash Barrier ensures minimum damage to the vehicle and its riders.


  • • Absorbs sudden impact on collision and thus minimize injuries.
  • • Guide drivers especially at night to maintain the track and hence minimizes accident. Enables quick repairs in case of accident.
  • • All components are hot dip galvanized as per IS: 1364 hence ensure longer life.

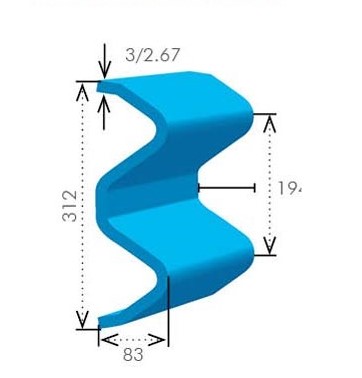

“W” Beams


  • • Cold roll formed in thickness 3mm/2.8mm/2.67mm
  • • Raw materials conforming to IS 5986/2062/10748 or equivalent of grade Fe360/Fe410/Fe510
  • • Hot deep galvanized to 550 gsm/sq.m
  • • Overall length 4318/3318mm/as per customized drawing
  • • Effective Length: 4000mm/3000mm
  • • Width: 311 mm

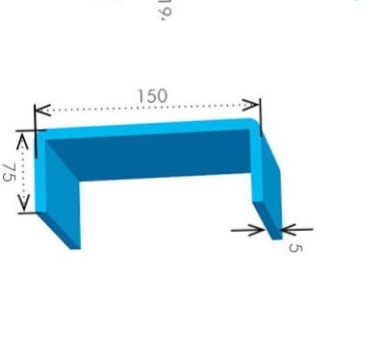

POST / SPACER


  • • Cold roll formed “C” & “I” channel
  • • Raw materials conforming to IS 5986/2062/10748 or equivalent of grade Fe360/Fe410
  • • Dimensions – 150mm x 75mm x 5 mm thickness (length as per customer requirement)
  • • Post spacing – 2 mtrs center to center or as per customer requirements

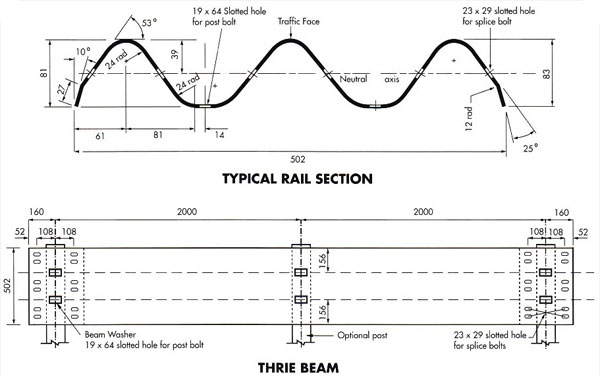

"THRIE” Beam


  • • Cold roll formed “C” & “I” channel
  • • Raw materials conforming to IS 5986/2062/10748 or equivalent of grade Fe360/Fe410
  • • Dimensions – 150mm x 75mm x 5 mm thickness (length as per customer requirement)
  • • Post spacing – 2 mtrs center to center or as per customer requirements

FASTNERS

  • • 16 mm dia button heads bolts for splice joint and for connection of “W” and “THRIE” beam to spacer.
  • • 20 mm dia hexagonal head bolts for connecting spacer and posts, confirming to IS: 1364.
  • • Hot dip Galvanized.

ANCHORAGE SYSTEM

  • 1. 3mm/2.67mm/2.8mmthickL-Shaped turneddownEndterminals
  • 2. FishTailTypeEndTerminal&U-shapedMedian End terminal
  • 3. Raw materials conformingtoIS 5986/2062/10748 or equivalent of gradeFe360/Fe410/Fe510
  • 4. Hotdipgalvanizedto550gsm/sq.mm

Why C & N CORPCrash Barrier?

  • • Robustlyconstructed from high quality raw materials
  • • Conforms to National & International Standards -MORTH India, American (AASHTO M180), Euro norm (EN 1317-1&2)
  • • In-house design, engineering, and production facilities
  • • In-house Quality checking & dedicated in house Lab-having UTM, Zinc Coating test facilities, Spectrometer etc.
  • • High Precisionin-house roll forming machines
  • • Strict Quality Control and Quality Systems (ISO 9001:2008)
  • • Single source responsibility (Design & Engineering,fabrication,Galvanizing Quality Check supply)
  • • High reputation in Govt. and private Sectors.
  • • Huge production capacity and strict delivery commitment
  • • Maintaining stock of 2000 MT
  • • 100% Customer Satisfaction
